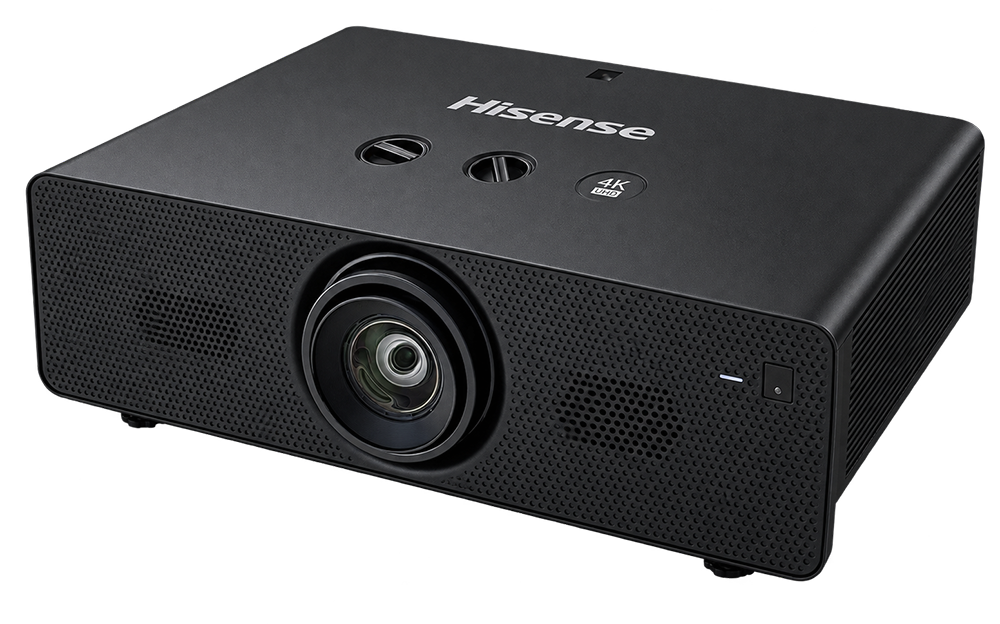

Laser light source with light-sensing frequency conversion, providing brightness output best adapted to the environment
Full-system 4K with HDR support, delivering ultra-clear and ultimate images
Motorized center quick-release replaceable lens with 4K ultra-clear resolution
Linear adjustable color temperature, white balance correction, and 7-color calibration
Auto + manual calibration, multi-point calibration, with optional built-in edge blending
Standard high-end 3G+32G commercial-exclusive smart system
Multiple practical commercial smart software including connected meetings, wireless screen mirroring, and screen saver photo album
15W*2 audio system, supporting DTS-HD, Dolby, and DTS Virtual:X virtual sky sound
Modular laser light source design with a service life of over 25,000 hours. The whole machine reaches IP5X dustproof grade, while the light source achieves IP6X dustproof rating. It supports ambient light adaptive brightness adjustment, automatically tuning light output based on surrounding illumination to deliver optimal brightness matching the environment.
Hisense’s new-generation Vivid 4K technology eliminates deceptive "4K decoding-only" pseudo-4K solutions and under-tuned bare-bones 4K hardware setups. Powered by flagship dual-chip 4-core AI refining computing, true premium 4K visuals are rendered via full-stack algorithmic processing:
Comes standard with a 0.7–0.9:1 throw ratio lens. Optional lenses include a 0.5:1 fixed short-throw lens and a 1.0–1.6:1 long-throw lens, fully adaptable to all application spaces from compact rooms to long-distance projection setups.
Equipped with a 4-core SOC and built-in commercial-grade intelligent OS with 4GB RAM + 32GB ROM, capable of storing dozens of 4K videos and running multiple apps simultaneously with seamless switching and lag-free control.
Hardware configuration includes dual-band Wi-Fi and Bluetooth 5.0 for fast, stable connectivity. Pre-installed commercial customized software: Julian Meeting, Hi Cast, with support for third-party app installation.
Customizable boot logo and boot video are available to boost clients’ brand identity. It is the industry’s first model with built-in centralized signage control, supporting real-time monitoring and management of thousands of devices, certified under rigorous information security standards.
Unattended operation mode enables scheduled power on/off and automatic playback of stored images/videos without external signal sources, control equipment or complex wiring, simplifying overall system deployment.

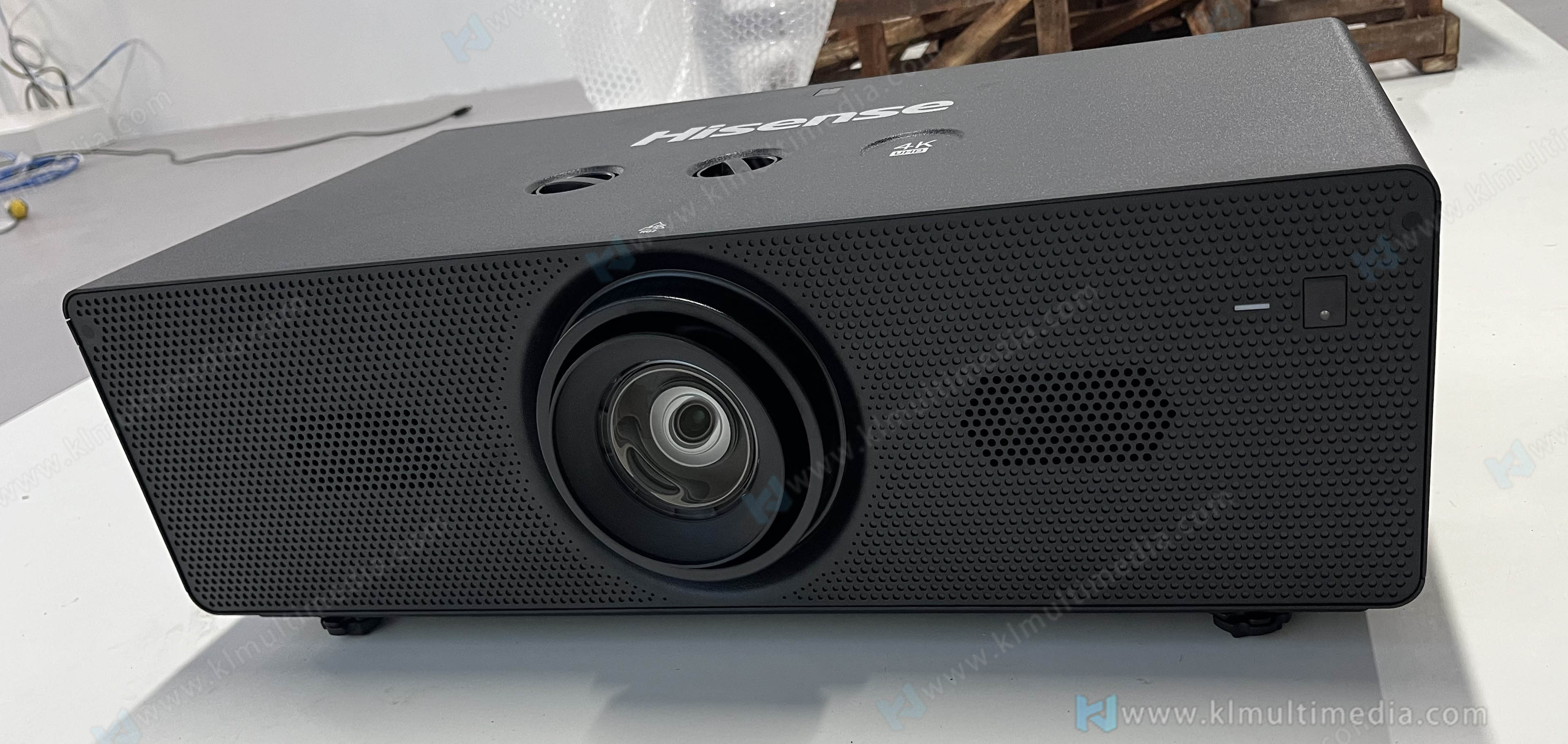

lens

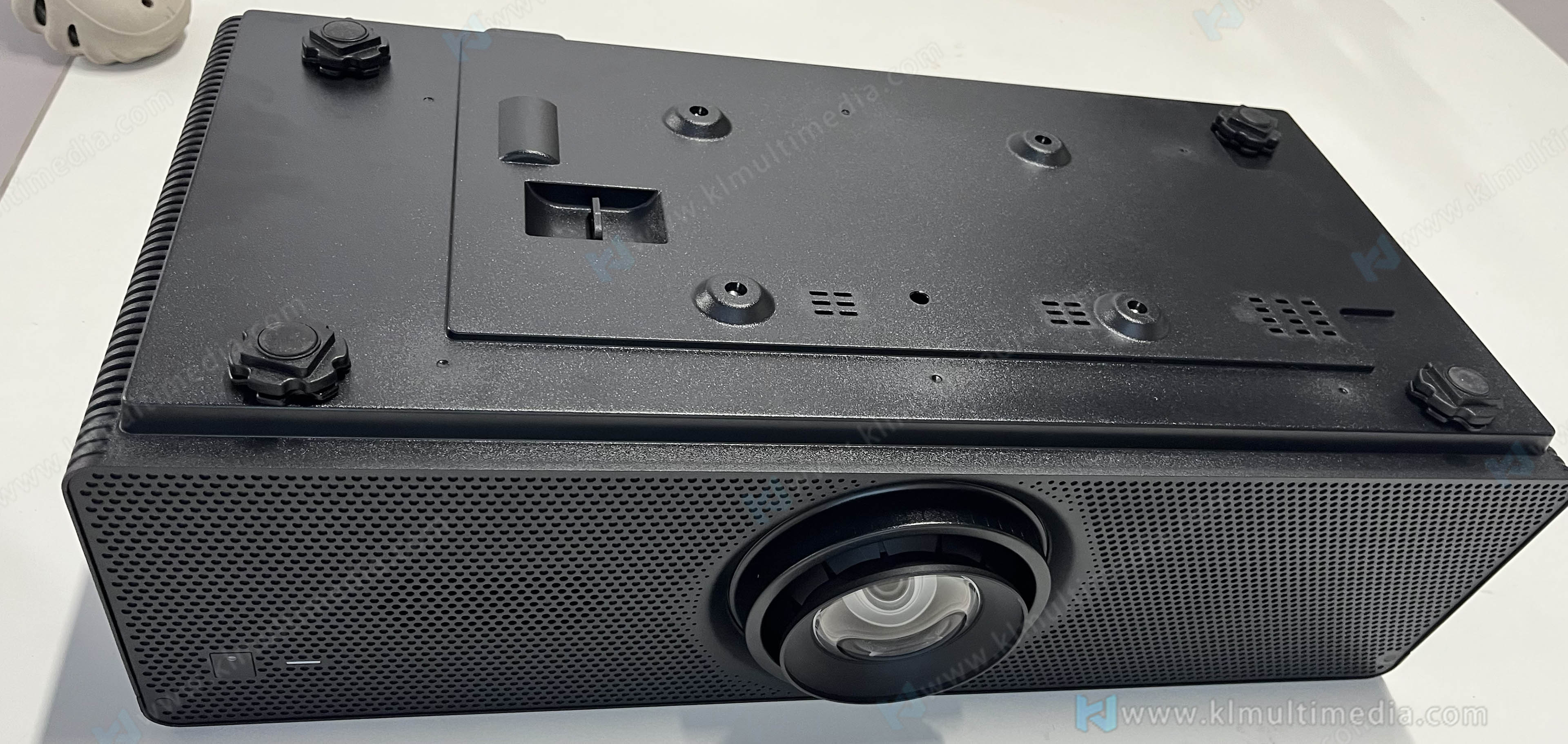

back

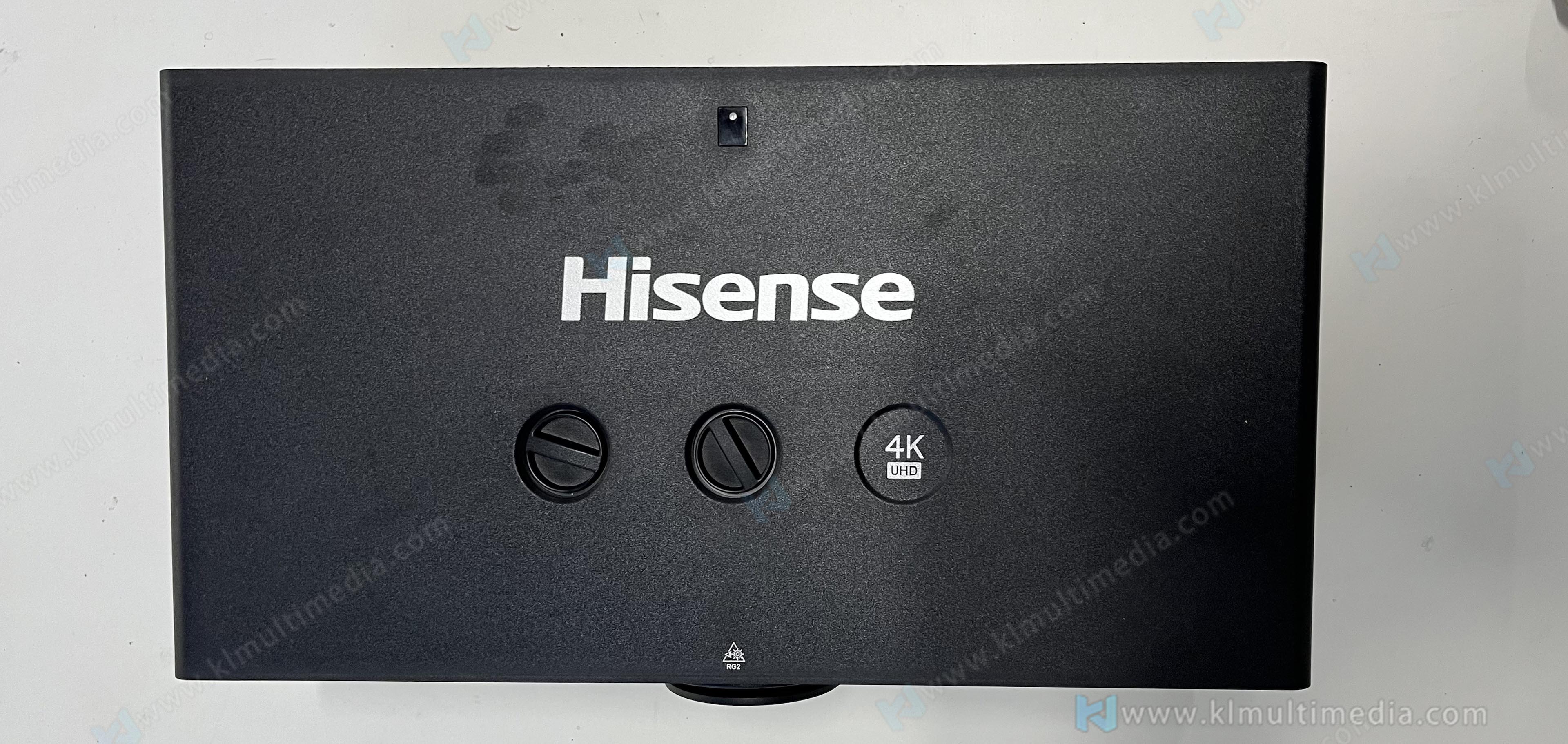

up

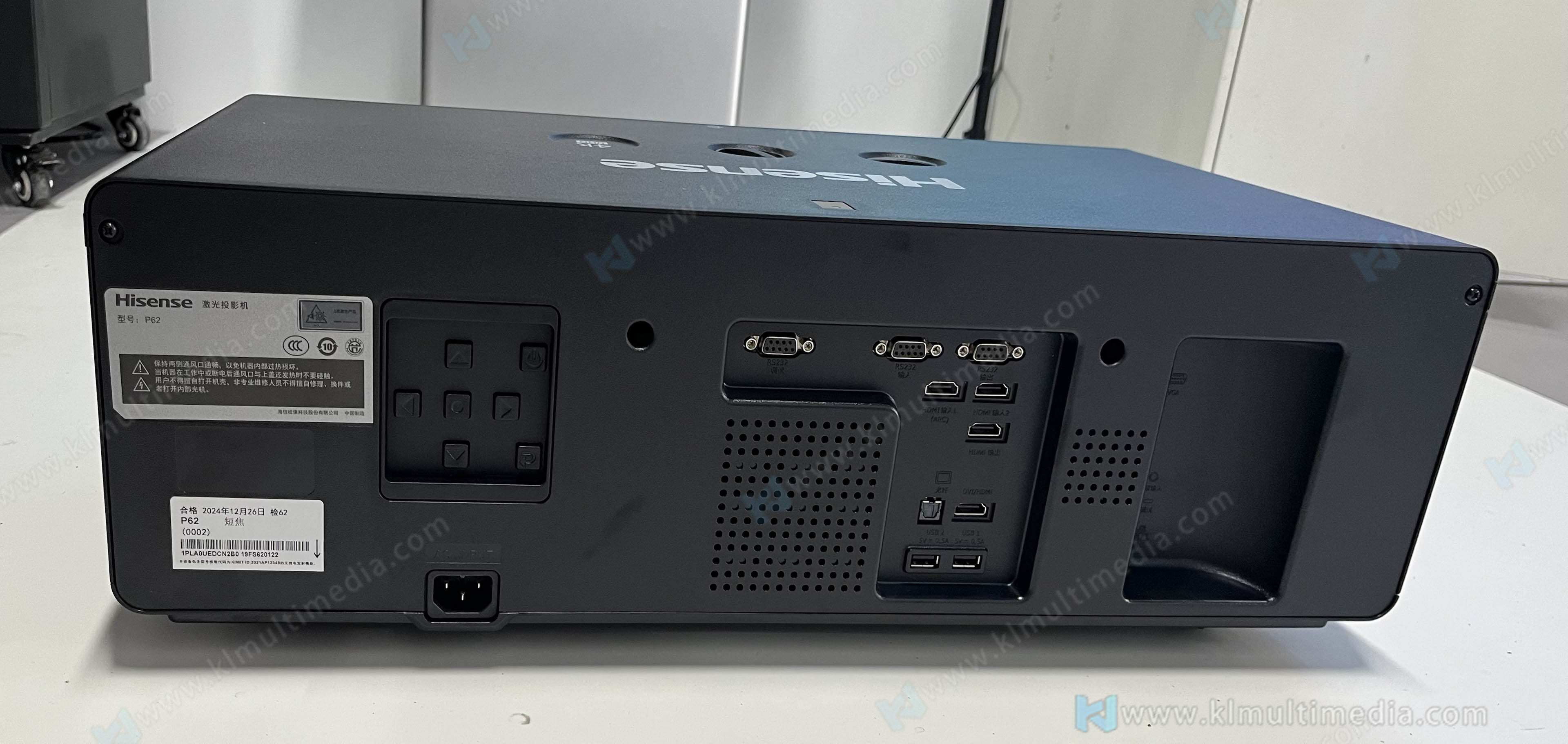

behind
| Product Model | Model | KL60S |
| Projection Technology | Display Technology | 1DLP 4K (3840×2160) DMD 0.47" SST |
| Brightness | Brightness (ISO 21118 Lumens) | 6600lm |
| Contrast Ratio | On/Off Ratio | ≥3,000,000:1 |
| Light Source | Light Source Type & Lifespan | Laser; Bright mode: ≥25,000hrs, Standard mode: ≥30,000hrs |
| Projection Lens | Throw Ratio | 0.7–0.9:1, interchangeable with 1.0–1.6:1 / 0.5:1 lenses |
| Projection Size | 60" ~ 300" | |
| Lens Shift | Vertical +110%, Horizontal +30% | |
| Color Performance | Color Gamut | ≥110% BT.709 (CIE 1976) |
| Smart System | Main Chipset | MT9618 |
| RAM | 4GB | |
| ROM Storage | 32GB | |
| Wi-Fi | Dual-band 2×2 Wi-Fi, supports wireless hotspot | |
| Bluetooth | Bluetooth 5.0 | |
| Operating System | Android OS | |
| UI | Custom Hisense commercial UI, no boot advertisements | |
| Pre-installed Apps | Hi Cast, Digital Signage Screensaver, Julian Meeting | |
| Audio System | Speaker | 1×18W speaker, rated power ≥15W |
| Audio Decoding | DTS-X, Dolby MS12-Y certified | |
| Special Functions | Edge Blending | Supported (optional built-in module) |
| Color Calibration | Linear color temperature adjustment, white balance auto/manual calibration, 7-point RGBCYM skin tone correction | |
| Light Source Brightness Control | 5 preset modes: Bright / Standard / Soft / High Dynamic / Low Dynamic; linear brightness adjustment & ambient light adaptive dimming | |
| HDR Support | HDR10 / HLG | |
| Wireless Cast Protocols | Miracast / DLNA / AirPlay (Windows, Android, iOS compatible) | |
| MEMC Motion Compensation | Supported | |
| Noise Level | Noise (dB) @ 1m | Standard mode: ≤38.0dB(A) |
| Interfaces | HDMI Input | 1×HDMI 2.1 (eARC supported), 1×HDMI 1.4 (CEC supported) |
| USB 3.0 | 1 port | |
| Audio Output | 1×3.5mm headphone jack | |
| RS232 Control In | 1 port | |
| RJ45 Ethernet | 1 port (network control enabled) | |
| Voltage & Power | Voltage & Power Consumption | 100–240V 50/60Hz, 490W±10%, Standby ≤0.5W |
| Image Correction | Correction Features | 4-point corner correction, 8-point geometric correction, horizontal/vertical trapezoid correction (40° max), auto-calibration via camera capture |
| Dimensions | Dimensions (W × H × D, mm) | 530 × 383 × 172 |
| Weight | Net Weight | ≤12.5KG |
