Outdoor projection is one of the most demanding display applications in the world. Ambient sunlight washes out weak images, dust and moisture attack the optical engine, and shows run far longer than a standard office projector can survive. A projector built for outdoor use must deliver three things at once: extreme brightness, long-term stability, and protected optics that keep working in harsh conditions.

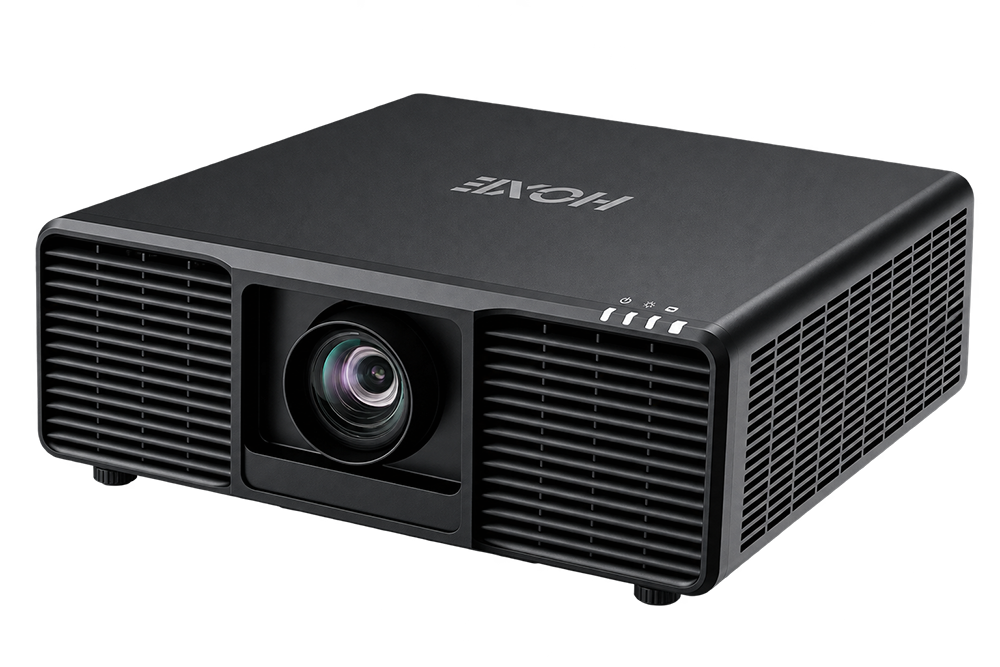

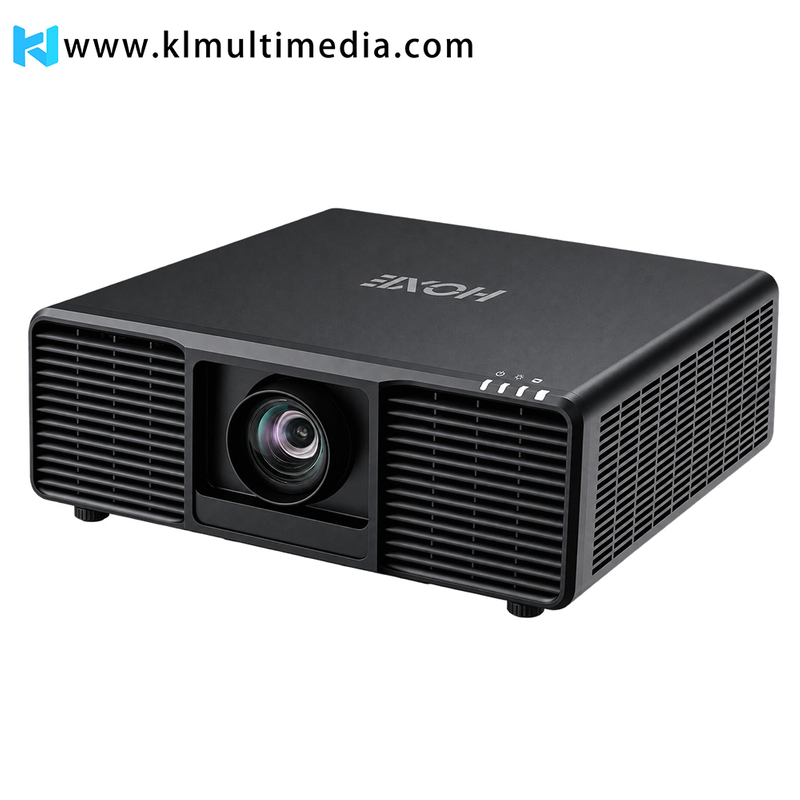

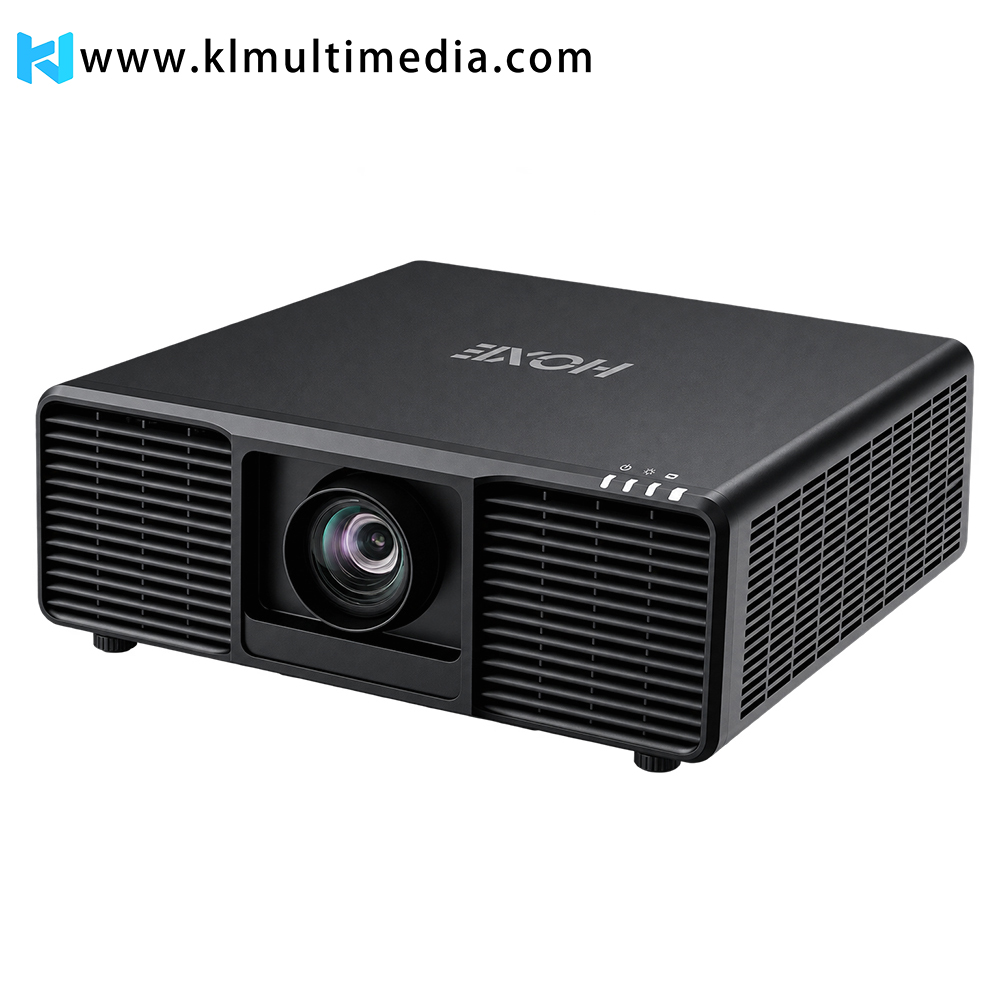

The KL-Q205U is designed for exactly these jobs. With 20,500 lumens of laser output, a sealed, waterproof-protected optical module, and a multi-laser light engine that reproduces colors with exceptional vividness. For anyone planning outdoor projection, the KL-Q205U combines the four things that matter most: 20,500 lumens of brightness for sunlit environments, multi-laser color that stays vivid for 20,000+ hours, a waterproof-protected optical module that survives moisture and dust, and the 7*24 reliability that keeps shows on air and signage on screen.
Brightness is the first requirement of any outdoor projector. The KL-Q205U outputs 20,500 lumens (measured to ISO 21118), which keeps images clearly visible even in sunlit conditions, bright lobbies, and high-ambient venues where ordinary projectors simply disappear. Combined with a 5,000,000:1 dynamic contrast ratio, the image stays punchy — deep blacks and bright highlights hold their detail instead of washing out to gray.
20,500 lm ISO 21118 rated brightness · 5,000,000:1 dynamic contrast · WUXGA 1920*1200 native resolution · ≥90% JBMA uniformity
The WUXGA (1920*1200) native resolution delivers crisp, detailed images on large screens — sharp enough for fine text, logos, and video content at stadium scale, while supporting 4:3, 16:9, 16:10 and 16:6 aspect ratios to match almost any screen or content format.
Where most projectors rely on a single lamp, the KL-Q205U uses a multi-laser head array: multiple blue laser banks combined with red and green laser modules to create a rich, full-color light engine. The result is color that looks alive — saturated, stable, and true to the original content.
Laser light also solves the two biggest problems of traditional lamps: color fading over time and frequent lamp replacements. The laser source holds its brightness and color output far longer, and it does so without the maintenance cost and downtime of swapping lamps.
Multi-Laser Heads — multiple blue, red and green laser modules work together for high brightness and vivid, saturated color.
≥100% REC.709 — color gamut that exceeds the REC.709 broadcast standard for accurate, true-to-life images (115% per datasheet).
20,000-Hour Light Engine — rated for 20,000 hours in standard mode and 25,000 hours in eco mode — years of daily shows with no lamp changes.
With color space covering 115% of REC.709, the projector reproduces natural skin tones, vivid brand colors and rich scenery detail — critical for advertising, live events and themed attractions where color accuracy drives impact.

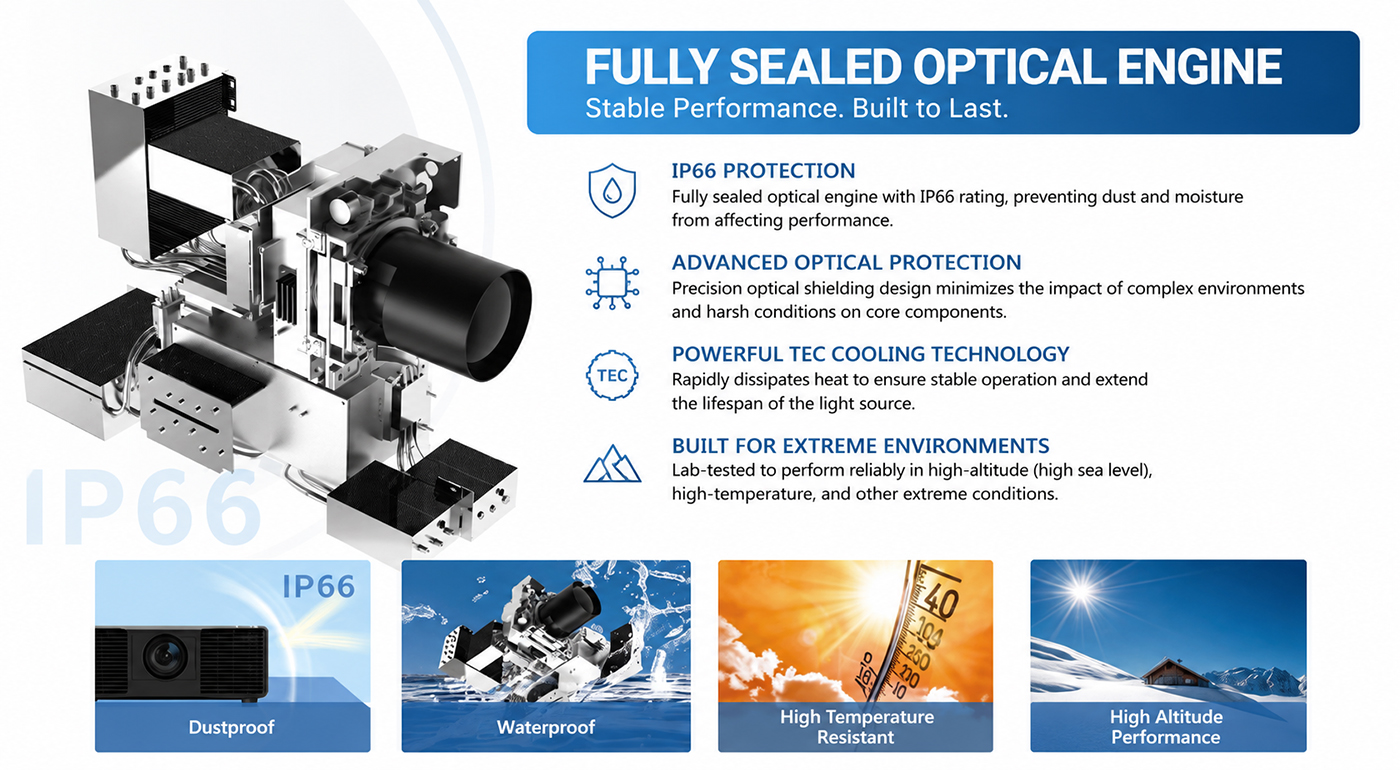

Moisture, condensation and drifting dust are the silent killers of outdoor projection equipment. The KL-Q205U addresses this with a waterproof-protected optical module — the sensitive laser engine and imaging components are sealed against moisture ingress, so the projector keeps delivering a clean, bright image when installed in humid coastal environments, open-air venues and semi-outdoor locations.
This protection is built into the design of the optical path, which means the imaging core stays dry and clean over years of outdoor duty, reducing service calls and image-degrading dust buildup. For operators running projectors on stages, rooftops, loading bays or covered outdoor zones, this protection is what makes 24-hour operation, 7 days a week realistic.
Unlike consumer projectors designed for a two-hour movie, the KL-Q205U is engineered for 24 hours a day, 7 days a week. That makes it a dependable workhorse for:
Outdoor digital signage — storefronts, building facades and billboard-style projections that run from opening to closing, every day.
Theme parks and attractions — nightly projection shows with no tolerance for mid-show failure.
Sports and stadium displays — pre-match, in-match and post-match content with long operating windows.
Control rooms and command centers — mission-critical walls that can never go dark.
With a full suite of professional controls — RS232 in/out, RJ45, mini USB, PJLink and Web-based control — the projector integrates into centralized management systems, supports scheduled power on/off, and can be monitored and adjusted remotely. Remote operation at 1000m+ via fiber input is supported, plus HDBaseT for signal runs up to 150m over a single cable.
This projector is a versatile tool for any application that needs large, bright, dependable images in challenging environments:
Outdoor events & concerts — stage backdrops, side screens and LED-supplementing projection under open skies.
Stadium and arena displays — high-ambient-light surfaces that demand maximum lumen output.
Building projection & facade mapping — architectural projection that holds color and brightness night after night.
Commercial signage & advertising — storefront and mall displays running 24 hours a day, 7 days a week.
Museums, exhibitions & themed attractions — immersive installations requiring accurate, vivid color.
Large conference halls & houses of worship — big screens in bright rooms without the need for full blackout.
| Parameter | KL-Q205U |
|---|---|
| Display System | DLP™ 0.8″ chip, DLP™ projection system |
| Native Resolution | 1920 * 1200 (WUXGA, 2,304,000 pixels) |
| Brightness | 20,500 lumens (ISO 21118) |
| Contrast Ratio | 5,000,000:1 (dynamic) |
| Uniformity | ≥90% (JBMA) |
| Color Gamut | ≥100% REC.709 (115% per datasheet) |
| Light Source | Laser, multi-head: 8* blue + 4* red + 2* green laser modules |
| Light Source Life | 20,000 h (standard) / 25,000 h (eco) |
| Aspect Ratios | 4:3 / 16:9 / 16:10 / 16:6 |
| Keystone & Geometry | ±30° vertical / horizontal keystone, 4-corner adjustment |
| Optical Protection | Waterproof-protected optical module |
| Duty Cycle | 24 hours a day, 7 days a week |

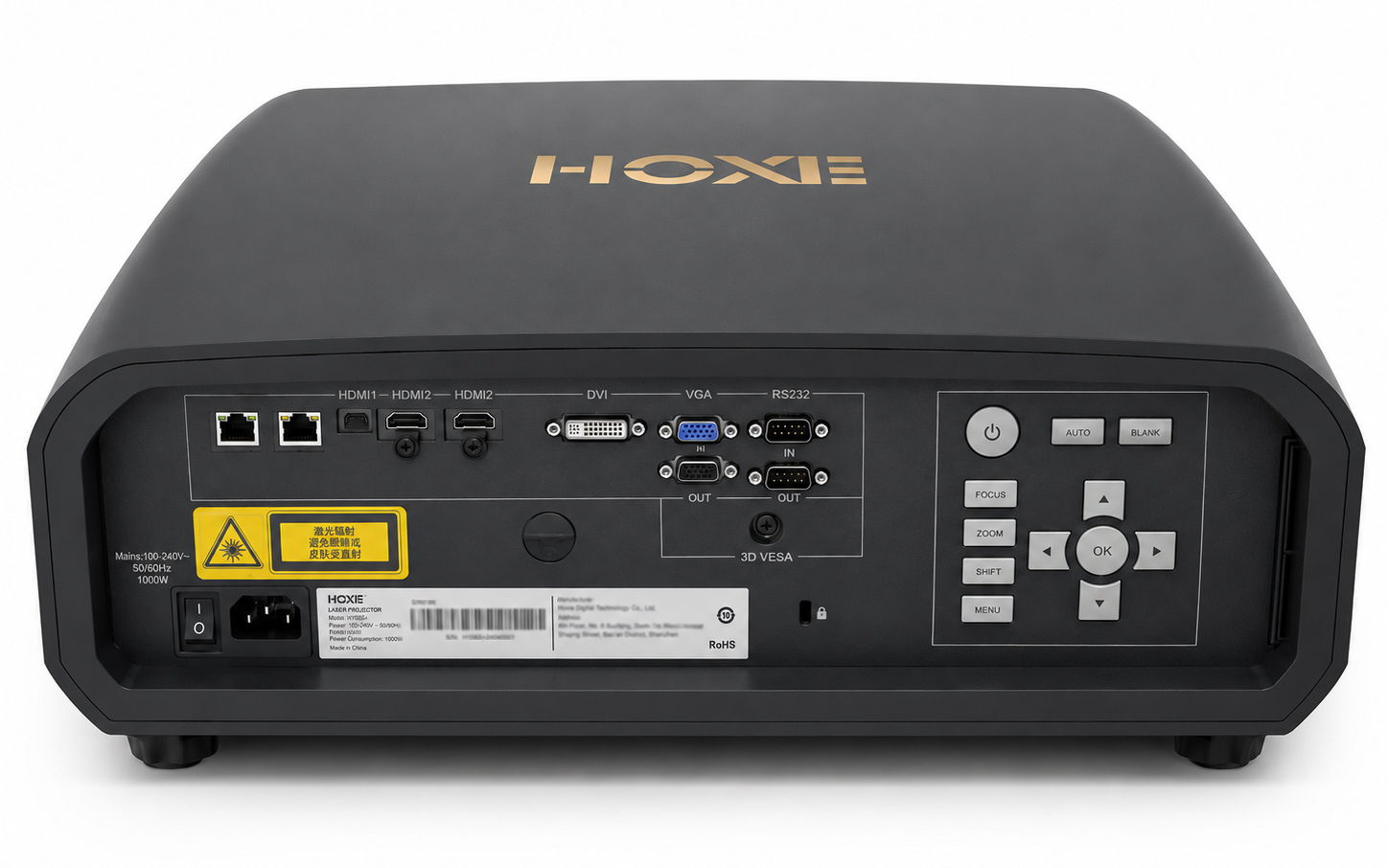

| Video Inputs | VGA *1, DP *1, DVI *1, HDMI (v1.4 with audio) *2, 3G-SDI *1, HDBaseT *1 |
| Long-Distance Input | Fiber optical LC *1 (video transmission beyond 1000 m) |
| Outputs | VGA out *1, Audio out *1, 3D SYNC OUT *1 |
| Control | RS232 in/out, mini USB, RJ45, PJLink, Web control |
| Power Consumption | 1300 W ±10% (standby <0.5 W) |
| Noise | 44 dB (typical @25 °C) |
| Dimensions (W*D*H) | 648 * 590 * 210 mm |
| Weight | ≤38 kg |
| Operating Altitude | 0 – 5000 m |
| Certifications | 3C, CE (ISO 9001 / ISO 14001 management systems) |
Specifications are based on the official manufacturer datasheet (ISO/IEC 21118:2020 measurement standard). Actual performance may vary with environment and installation.
Yes — it is built for outdoor and semi-outdoor duty: the optical module is waterproof-protected, the laser engine is rated for 24 hours a day, 7 days a week, and the unit supports operating altitudes from 0 to 5000 m. For fully exposed installations, pair it with appropriate weatherproof housing as recommended for the specific site.
Multi-laser light sources combine several laser modules to produce higher brightness with vivid, saturated color. They also last dramatically longer (20,000–25,000 hours versus roughly 3,000–6,000 for a typical lamp), hold color stability over time, and eliminate recurring lamp replacement costs and downtime.
The fiber optic input (LC) supports video transmission beyond 1000 meters, and HDBaseT supports runs up to 150 meters over a single network cable — both ideal for stadiums, large venues and distributed control rooms.
Native WUXGA 1920*1200 resolution with 4:3, 16:9, 16:10 and 16:6 aspect ratios, plus ±30° keystone and 4-corner adjustment for flexible installation on angled or irregular surfaces.
Yes. RS232, RJ45, mini USB, PJLink and Web-based control allow scheduled power on/off, centralized monitoring and remote adjustment over the network — essential for 24/7 signage and multi-projector installations.
