English
Brand: HOXE
Model: HT-L680K
Display Technology: DLP
▲ DMD Chip Size: ≥ 0.78 inch
▲ Standard Brightness: ≥ 6,500 ISO Lumens (ISO 21118 Standard)
▲ Center Brightness: ≥ 7,000 ISO Lumens (ISO 21118 Standard)
Contrast Ratio: ≥ 5,000,000:1
▲ Native Resolution: 3840 × 2160 (4K UHD)
Aspect Ratio: 4:3, 16:9, 16:10, 16:6 (Selectable)
▲ Light Source: Laser; Light Source Power: ≥ 138W
Laser Light Source Lifetime: ≥ 20,000 hours (Up to 25,000 hours in Eco Mode)
Power Consumption: ≤ 330W (±10%); Standby Power Consumption: ≤ 0.5W
Standard Lens Throw Ratio: 0.98–1.37:1; Lens Shift: Vertical ±40%, Horizontal ±15%
Supports Multiple Optional Lenses with Quick Lens Replacement
Brightness Uniformity: ≥ 90%
Net Weight: ≤ 11 kg
Dimensions: 440 × 340 × 148 mm
Input Interfaces
VGA (15-pin) ×1
Audio In ×1
HDMI 2.0 (with Audio & CEC) ×2
USB ×2
Output Interfaces
VGA Output (15-pin) ×1
Audio Out (3.5 cm Mini Jack) ×1
3D Sync Out ×1
USB-A Power Output (5V/2A) ×1
Control Interfaces
RS-232 Input (9-pin Male) ×1
RS-232 Output (9-pin Male) ×1
USB (Mini Type-B) ×1
LAN (RJ45) ×1
Features HEP Packaging Technology for the DMD chip, providing enhanced brightness, significantly improved native contrast, finer image quality, and outstanding detail reproduction.
Utilizes Telecentric Optical Path Design for higher optical efficiency and improved light utilization.
★ Intelligent Image Processing Technology delivers vivid color reproduction with 100% REC.709 color gamut coverage, enhanced red color performance, and exceptionally vibrant images.
HDR (High Dynamic Range) Technology provides richer bright and dark details, accurately restoring image depth and realism.
DCR (Dynamic Contrast Ratio) Enhancement Technology improves image sharpness, contrast, text clarity, and includes Dynamic Digital Black Screen (DCR).
★ Zero-Flicker Technology utilizing advanced image processing algorithms for a flicker-free viewing experience.
★ Supports 3D Ready and DLP-Link 3D display technology, equipped with a 3D Sync Output interface for external 3D transmitters and simultaneous connection of multiple 3D glasses.
Supports 24/7 continuous operation and 360° installation in any orientation.
Supports ±15° Keystone Correction, Four-Corner Adjustment, and Digital Zoom.
Supports multiple network control methods and PJLink (Class 1) protocol.
▲ Instant Power On/Off with Zero Waiting Time, plus programmable Auto Power-Off Timer.
Direct Power-On Function after AC power is supplied.
▲ Automatically powers on when detecting VGA or HDMI input signals; supports CEC and signal-triggered power control.
Remote Control ID Setting; Remote Control includes a Laser Pointer function.
High Altitude Mode for reliable operation in demanding environments.
One-Touch Blank Screen Function to ensure information security.
Automatic Signal Search and Signal Synchronization.
Customizable Startup Logo.
▲ Built-in Android 11.0 Smart Operating System (Upgradeable), supporting Wi-Fi connectivity and online application downloads.
Memory: 2GB RAM + 16GB Storage
Built-in Bluetooth 5.0
▲ Supports Online App Installation and Uninstallation.
▲ Supports Wireless Screen Mirroring, including Miracast One-Touch Casting. Compatible with Windows 10 or above, Android 9.0 or above smartphones, tablets, and PCs.
▲ USB Plug-and-Play supports direct playback of videos, images, PDF files, and Microsoft Office/WPS documents. Android APK installation via USB is also supported.
Fully localized Chinese-labeled control panel and remote control.
★ Certifications:
China CCC Certification
China Energy Conservation Certification
China Environmental Protection Certification
Official Product Test Report
★ Supply Requirements:
Manufacturer Authorization Letter
After-sales Service Commitment Letter
Supply Authorization Certificate
ISO 14001 Environmental Management System Certification
ISO 9001 Quality Management System Certification
Product Brochure
Warranty:
3-Year Warranty for both the projector and laser light source.

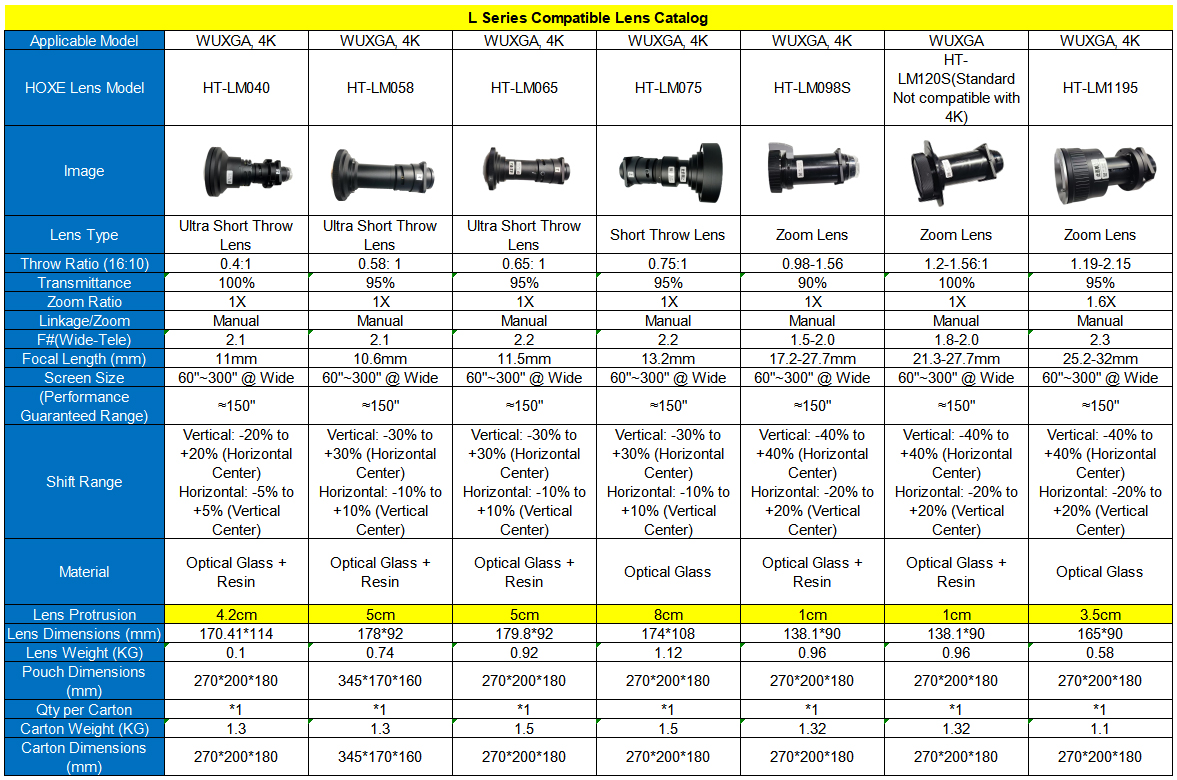

Optional Projection Lenses
