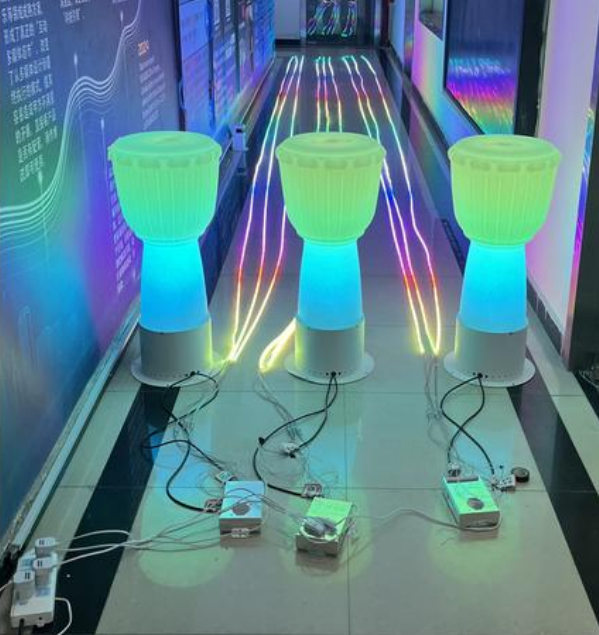

How To Connect The Light Drum Optical Flow

Drum Optical Flow Manual .pdf

Welcome to our complete guide on connecting your Drum Optical Flow sensor. Proper installation is crucial for achieving accurate data and ensuring the smooth operation of your system. Whether you're a technician, engineer, or a DIY enthusiast, this page provides all the resources you need for a successful setup.

Drum Optical Flow Manual

1. Core Wiring Instructions

   This document details the wiring logic between the Drum Optical Flow, power supply, signal lines, and light strips. Strictly match wires to corresponding interfaces by color to avoid reverse or incorrect connections.

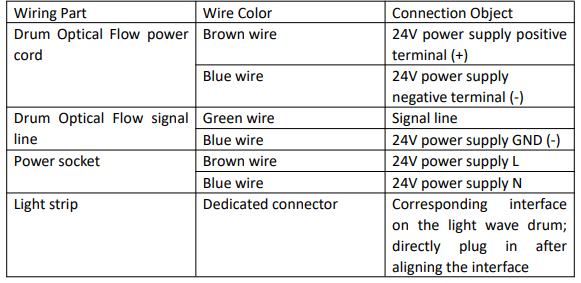

2. Wiring Correspondence Table

3. Wiring Safety Precautions

1. Disconnect all power supplies before wiring to avoid electric shock risks fromliveoperations.

2. After wiring, check that all wire connections are secure to prevent poor contact caused by looseness.

3. Keep the entire wiring process away from water sources and humid environments to ensure safe equipment operation.

4. if used outdoors, place the power supply and connectors inside a moisture-proof box.
