What is Arc Wall Interaction?
The Kleader Arc Wall Interaction system is built for curved surfaces. Experience flawless interaction on concave or convex screens, uneven walls, and large LED/LCD video walls.
Wide Compatibility: Works with most curved, irregular, and tiled display walls.
Large Coverage: A single unit covers an expansive area of up to 10m x 4m.
Smart Correction: Our exclusive algorithm automatically fixes alignment issues on curves, ensuring every touch is accurate.
Easy Expansion: Add more laser emitters to cover even larger screens.

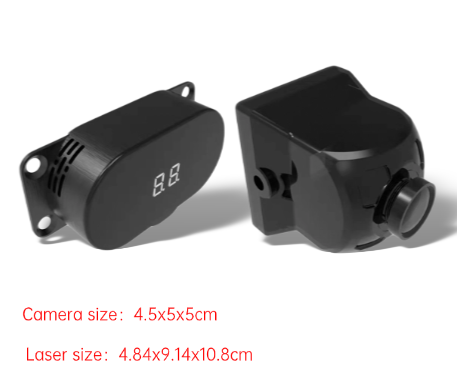

Product Parameter

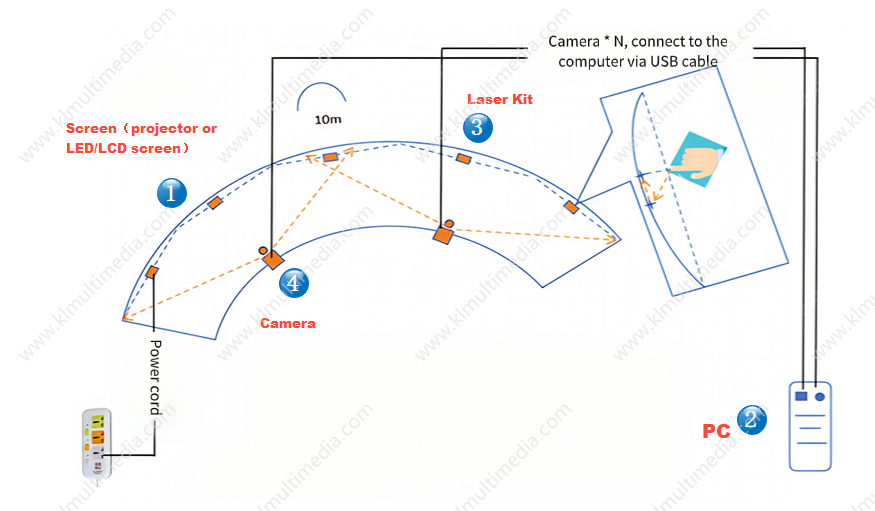

Product Set Up
Solution Advantages: Traditional laser systems inherently struggle with curved screens due to the nature of light, which travels in a straight line. This creates a significant loss of accuracy, as the laser’s focal depth is highest at its center. Our solution employs a proprietary algorithm proprietary algorithm that intelligently compensates for this depth variance, recalculating each touch point to restore precision on any curved surface. All this is achieved with a cost-effective multi-laser setup, delivering optimal performance without compromise.
| 1 | Projector/Screen（LED/LCD） support any resolution projector or LED Screen. |
| 2 | PC Control the software, can support booting the software to start automatically. |
| 3 | Camera Captures and analyzes laser signals and touch actions to determine precise interaction points. |
| 4 | Laser Kit Provides invisible reference signals for accurate positioning and interaction tracking. |
Application Case

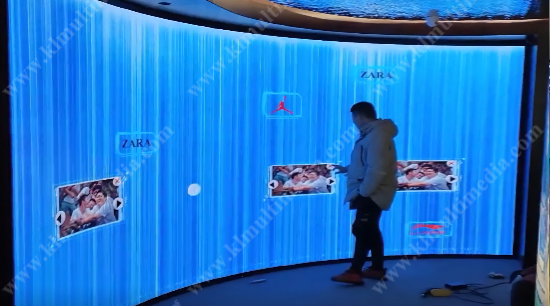

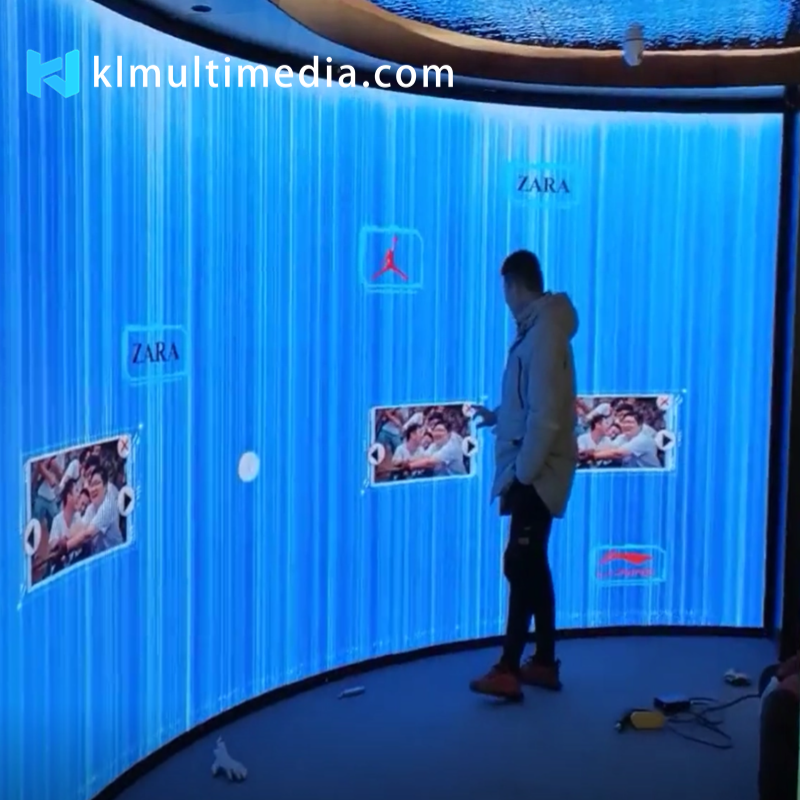

Inner Curved Screen

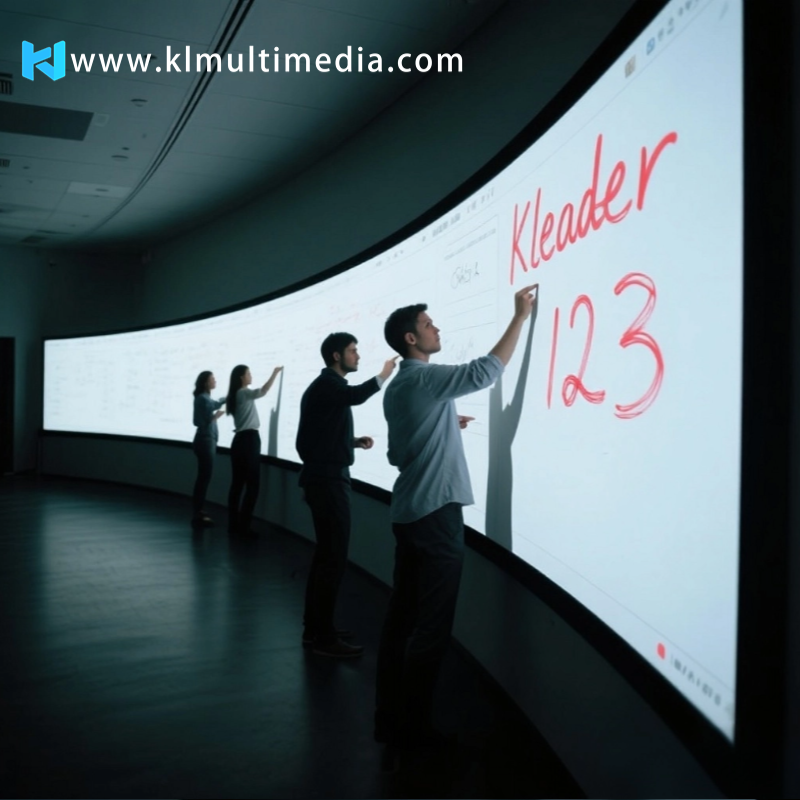

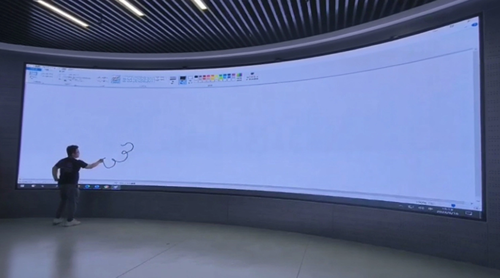

Concave Curved Screen

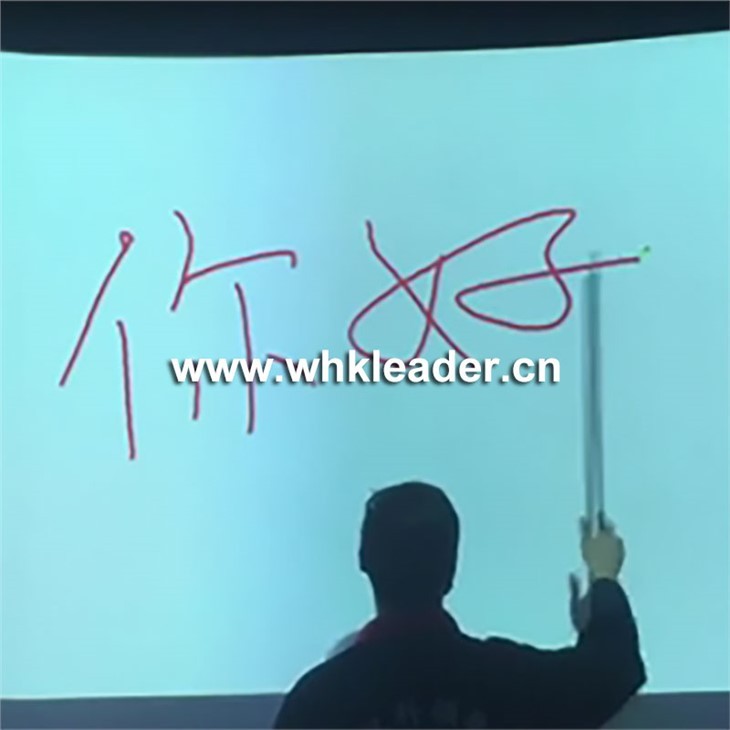

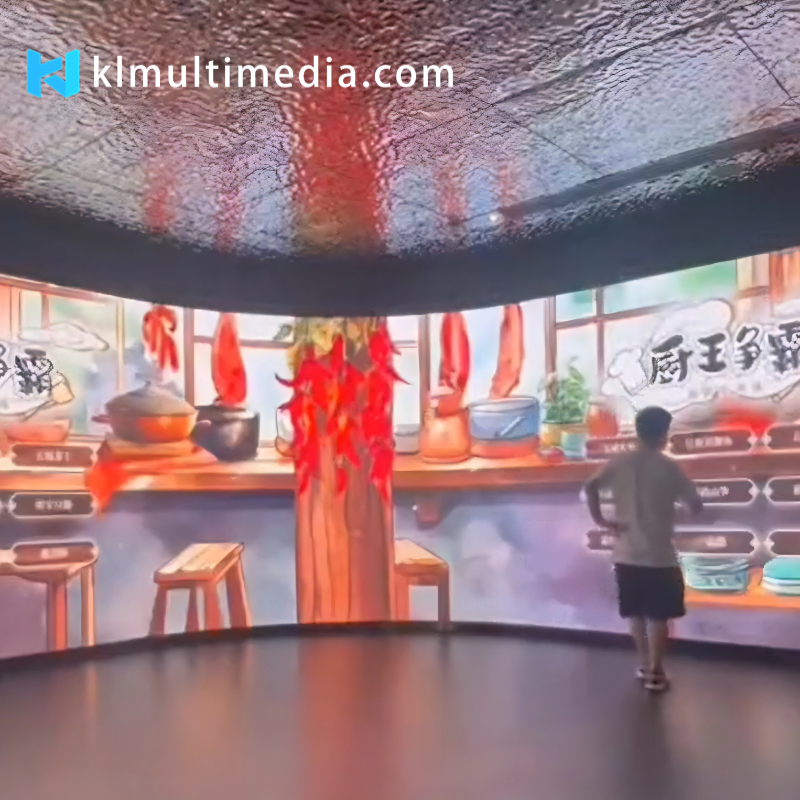

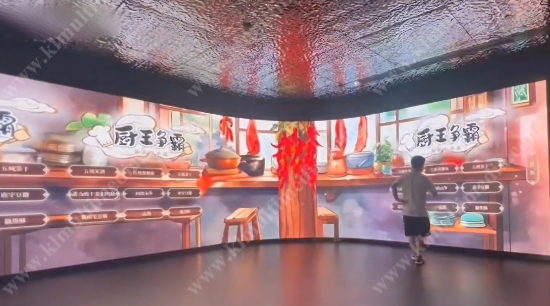

Curved Projection Screen

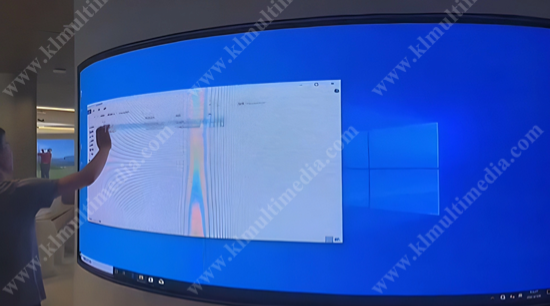

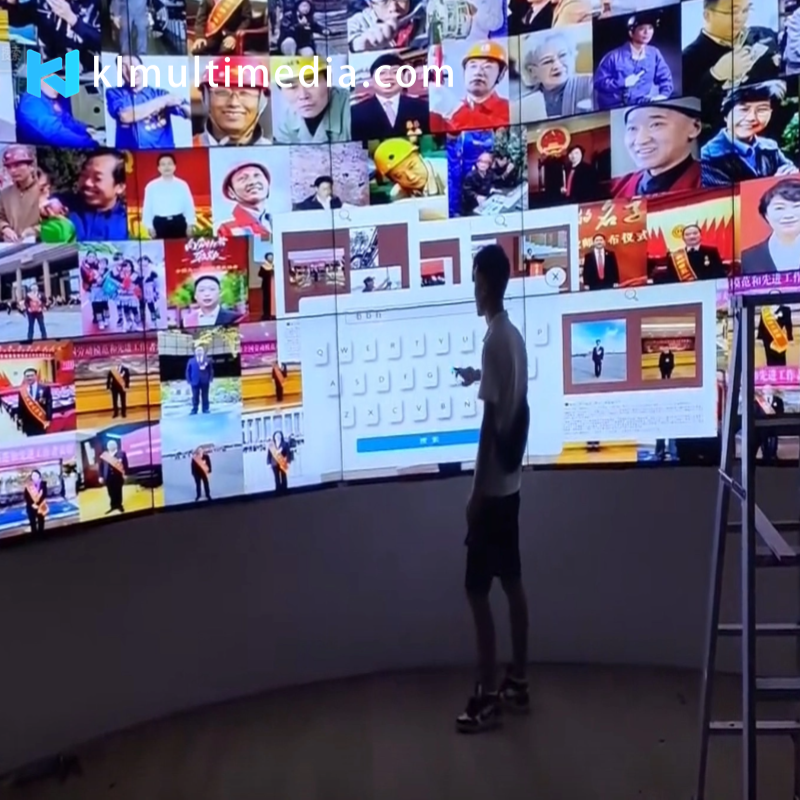

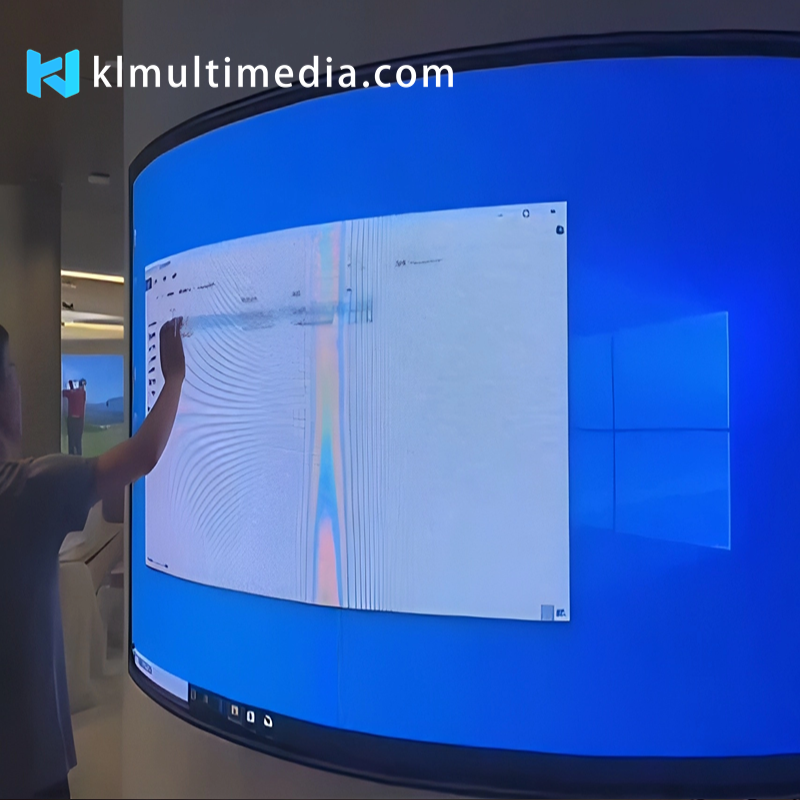

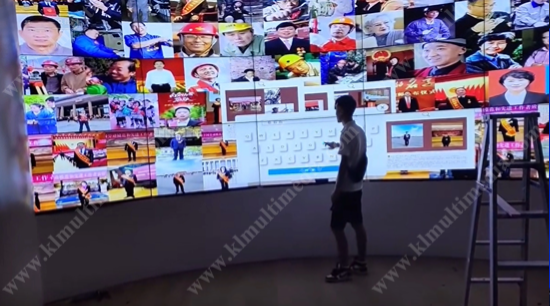

Curved LCD splicing screen
FAQ(click icon for answer)
 | How to set up and calibrate the precision touch system? |
| How to see other related products video? |
Q1: What is Arc Wall Interaction, and how is it different from standard interactive projection?
Arc Wall Interaction is a specialized technology that enables seamless touch and gesture interaction on non-flat surfaces. Unlike standard interactive projectors that require a perfectly flat screen for accuracy, our system uses advanced laser sensing and proprietary algorithms to adapt to curves, bumps, and unevenness.
Q2: What types of surfaces are compatible with the Kleader Arc Wall Interaction system?
Curved Surfaces: Both concave (curving inward) and convex (curving outward) screens or walls.
Irregular Walls: Textured, uneven, or non-standard architectural surfaces.
Large Tiled Displays: Seamless interaction across video walls made up of multiple LED or LCD panels.
Standard Flat Walls: It works perfectly on flat surfaces as well, making it a versatile all-in-one solution.
Q3: What does "Smart Correction" mean, and why is it important?
"Smart Correction" is our exclusive software algorithm that automatically compensates for the geometric distortions caused by curved or irregular surfaces. When you project an image onto a curve, a straight line in the software may appear curved on the wall. Smart Correction digitally "warps" the interactive area so that the user's touch aligns perfectly with the intended target on the projected image.
Q4: How large of an area can a single unit cover? Can it be expanded?
A single Kleader Arc Wall Interaction unit offers extensive coverage of up to 10 meters wide by 4 meters high (approx. 32.8 ft x 13.1 ft). For even larger installations, such as expansive video walls or panoramic curved walls, our system supports easy expansion. You can simply add more laser emitters to create a seamless interactive canvas of virtually any size, ensuring a consistent experience across the entire display.
Q5: Why should I choose an interactive curved wall over a standard flat interactive wall?
A curved interactive wall provides a more immersive and memorable experience. It draws visitors in, and makes content feel more dynamic and engaging. It allows you to transform architectural elements into functional interactive canvases, maximizing the use of space and creating a unique focal point that sets your venue apart.
