● Support multi-touch on various types of screens-various interactive gesture recognise

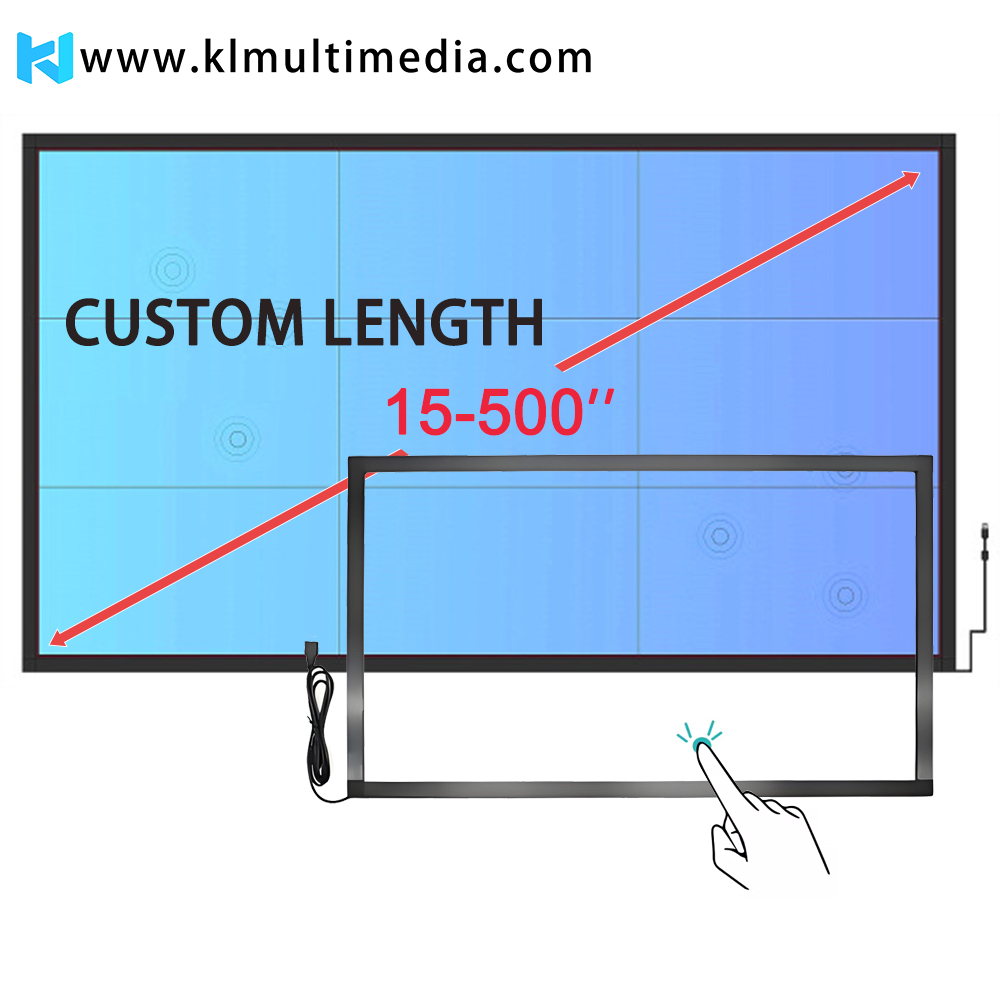

● Adapt to any screen size, And supports curved screen and immersive screen customization
● Easy install ,USB HID Plug & Use, support multiple system

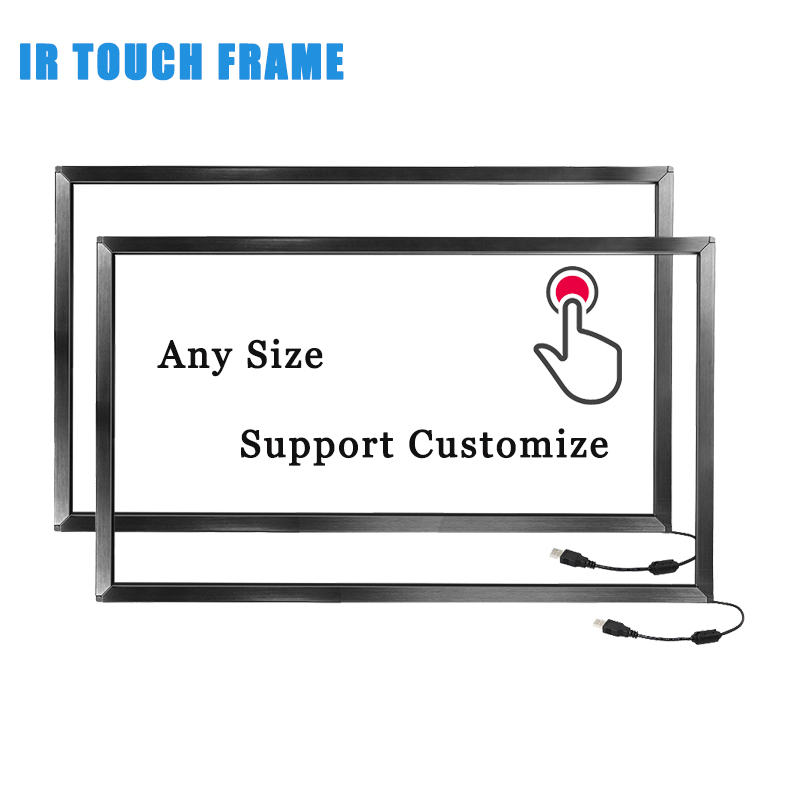

●Quality-tested infrared touch frames for versatile screen and projection use
Size | Price(USD) | Size | Price(USD) |
19" Or 21" | $ 90 | 43" | $135 |
55" | $ 180 | 65" | $ 225 |
75" | $ 990 | 86" | $ 1350 |
Customize other size IR frame with short time and cheap price |
Infrared touch frame technology works through creating a dense, uniform grid of invisible (to the naked eye) LED lights and sensors to detect interaction. These lights and sensors, embedded in the bezel of the touch frame itself are constantly working so that whenever a user touches the screen, a disturbance is registered, identifying the point of contact on the display.
The beauty of Infrared technology is that the user doesn’t actually have to make contact with the screen itself, as the touch is registered through breaking the pattern of light rather than having to make a physical connection with the screen.
Gesture support: | click, drag,double-click |

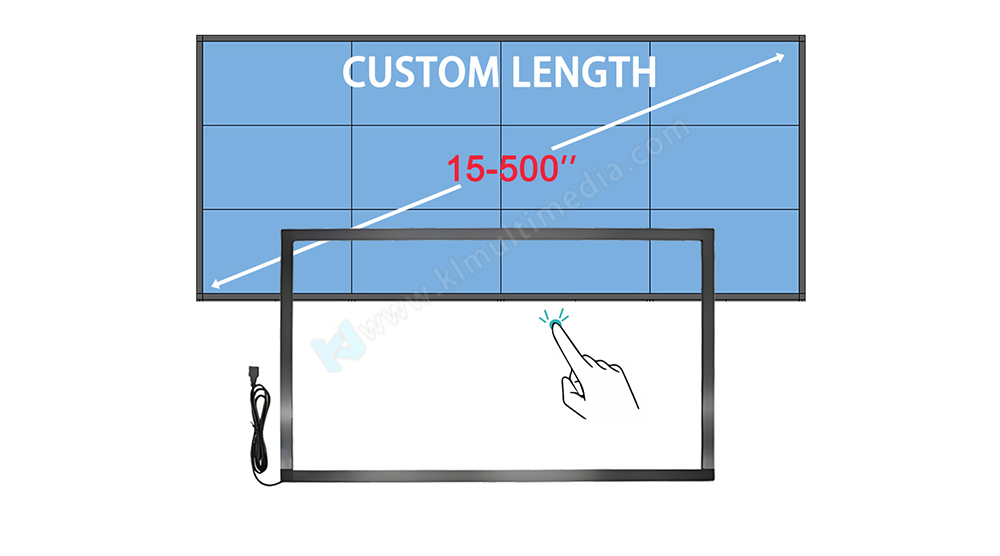

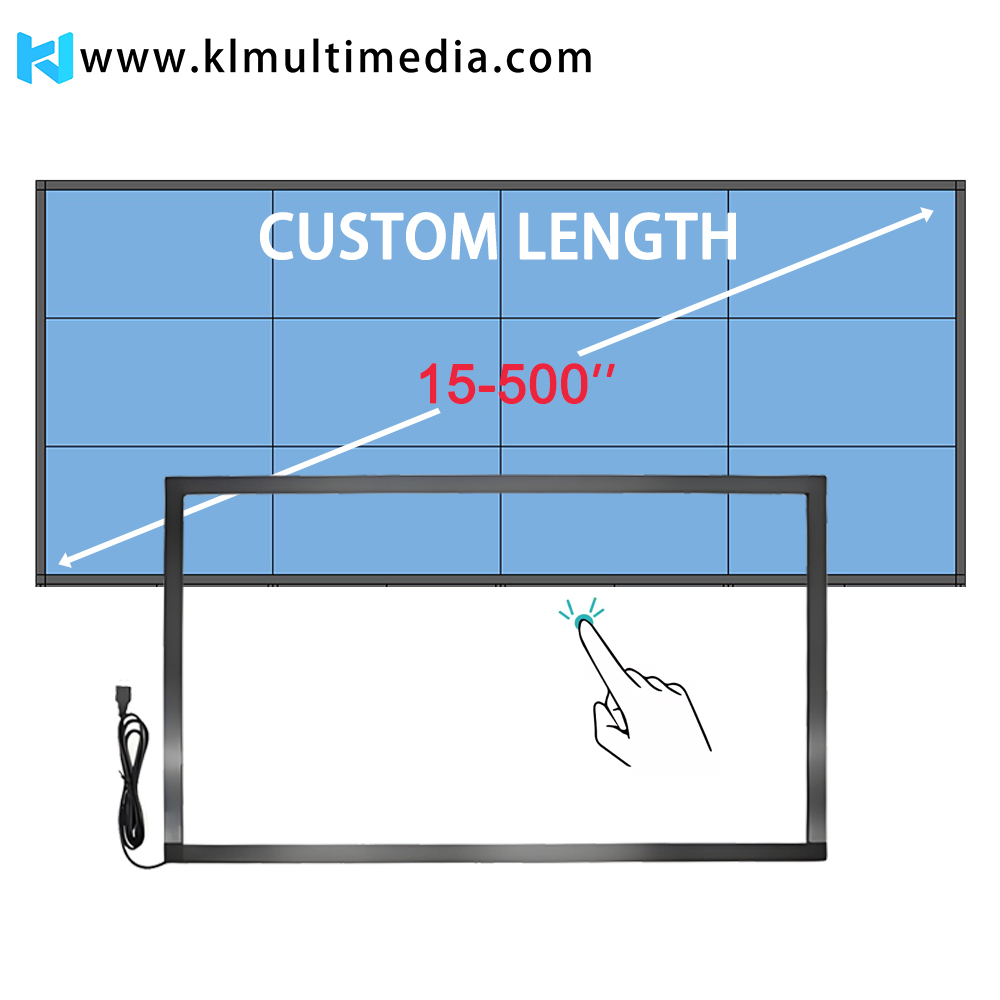

Available size: | Customized, based on how many splicing screens are used. |
Touch points: | 40 points |
Used outdoor: | waterproof and anti sunlight frame optional |
Glass cover: | optional |
![]() | How to install it? |
![]() | How to see other related products video? |

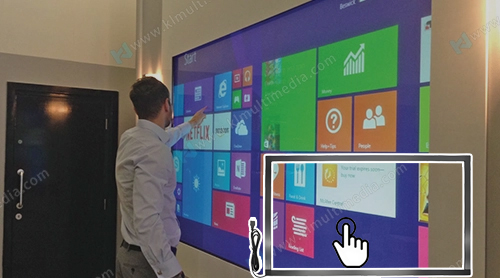

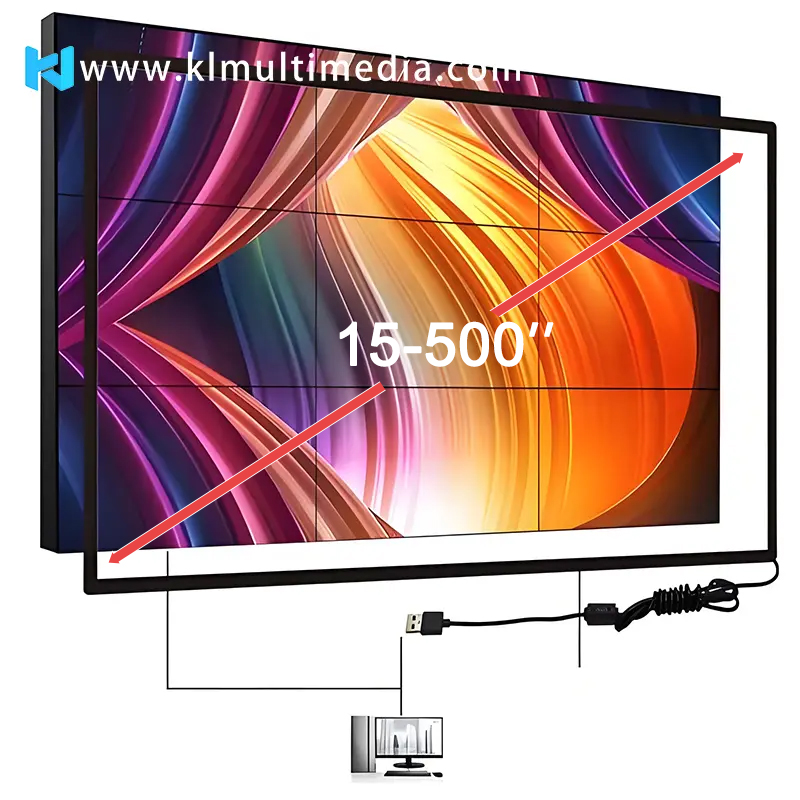

The infrared frame is a regular hand-touch device widely used in front of any screen. Our selling IR frames support as many as 40 points, so a few people can interact simultaneously with multiple fingers. Plus, the IR frame can attach to any screen (as long as 17 meters), regardless of size. Finally, the detachable structure of the IR frame is conveniently used for logistics. Only in this way can the freight cut down, and isn't the equipment easily damaged during transportation.
Working principle: Capacitive touch works by detecting the tiny electrostatic field changes generated by fingers on the screen surface, while infrared touch uses the detection network composed of infrared transmitter and receiver matrix to detect touch points.
Performance characteristics: Capacitive touch has the characteristics of high precision and fast response, and is not affected by environmental factors, while infrared touch may be affected by environmental factors such as temperature and dust, and its precision and sensitivity are relatively low.
Application scenario: Capacitive touch is widely used in high-end devices such as smart phones and tablet computers, while infrared touch is more suitable for large-scale devices, such as display screens and billboards, which require large-area touch operation.
