Feature And Advantage
● Unlimited touchpoints and interactive area, and support multi-sensor link
● Easy to setup &Graphical User Interface (GUI) for an easy setup &Multilingual User Interface.

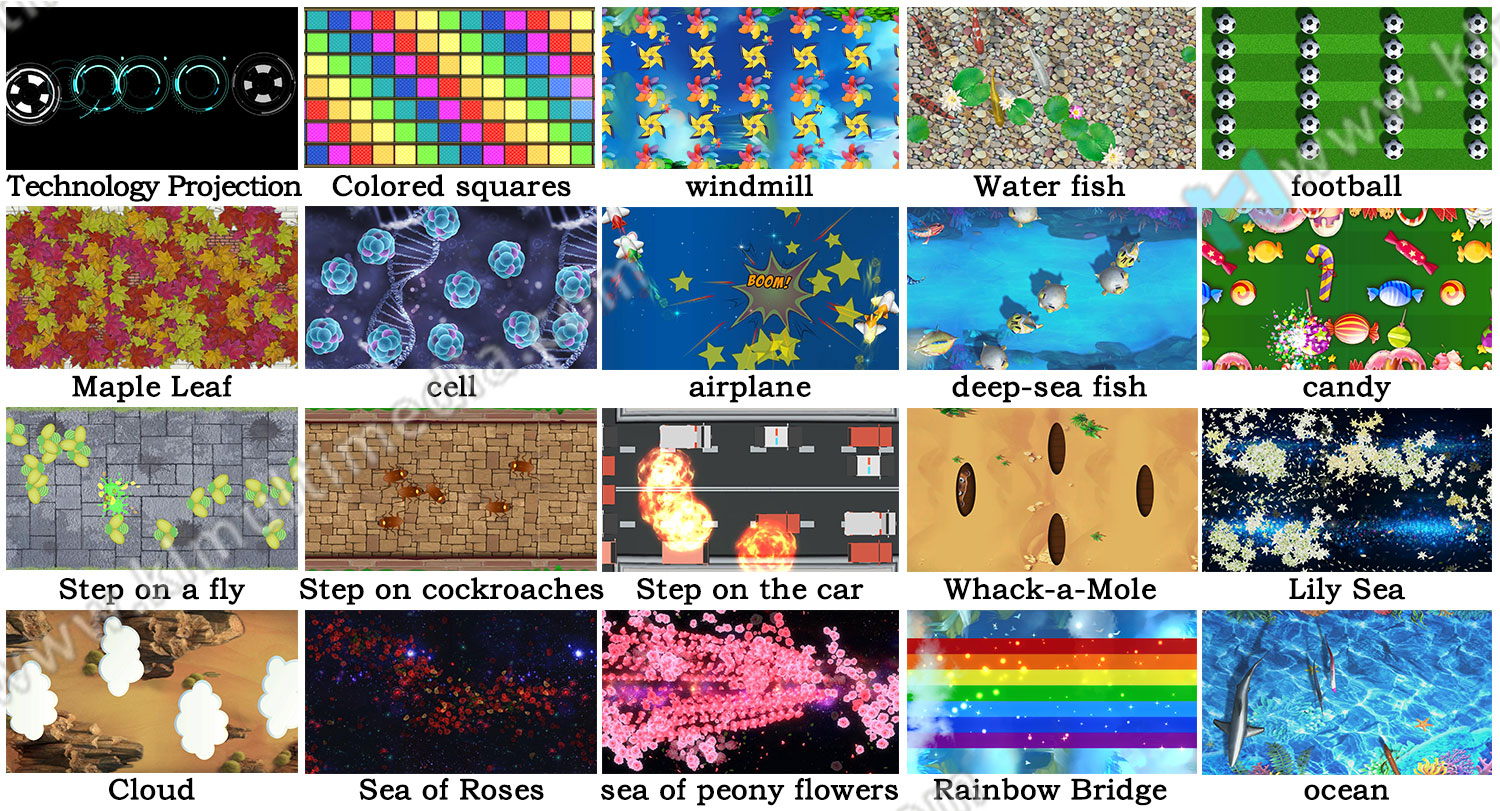

● 50+ Free Interactive Effects
Beach
Piano
Sea World
Whale
Broken Glass
Leaves
Fish
FootBall
● Support the effect production software, and not need a programmer.
● Support development SDK,works basically with any interactive software. Below you can find software that will work seamlessly with it.
● Run on Windows system.
● Supports the following outputs: Mouse, Windows Touch, and TUIO.
● Support as a touchless interactive device.
Application Scenario

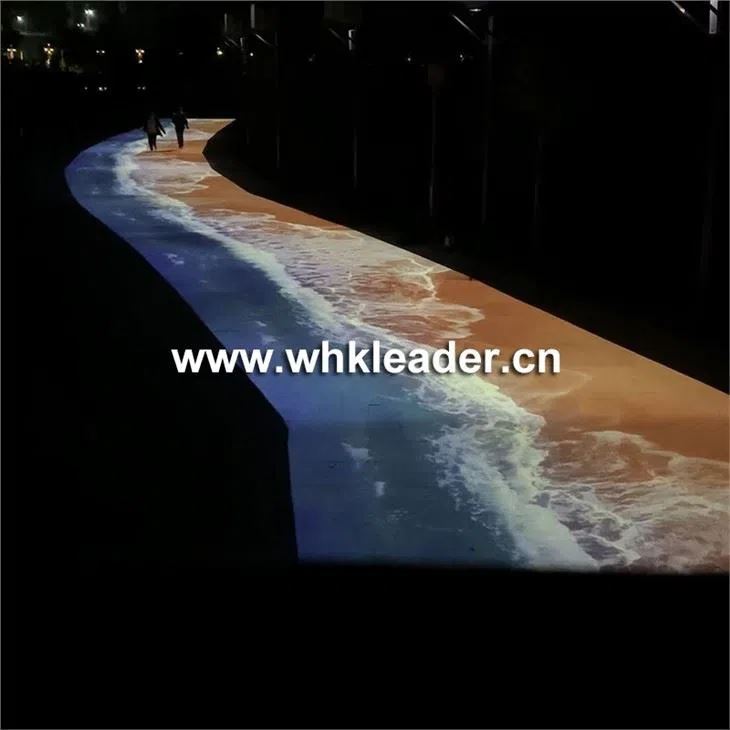

Led Running Track
Product Set Up
Floor Installation

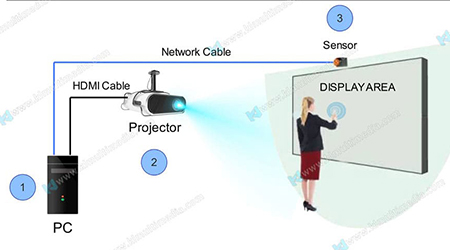

Wall Installation
| 1 | PC 1.Receive sensor interactive signal 2.Run interactive software |
| 2 | Display Device Any kind of digital display device like a projector, Led screen, or monitor.etc |
| 3 | Sensor Detect interactive signals and transmit them to interactive software |
Why Choose TOF Radar
| Item | Normal Lidar | Our Lidar |
| LifeTime | 3-6 months | More than 5 years |
| Stability | High Failure Rate | Low Failure Rate |
| Scan Frame Rate | Low (less than 10FPS) | High (More than 25FPS) |
| Sensitivity | Low | High |
| Accuracy | Low | High |
| Working mode | Motor bearing rotation | Electronic scanning |
| Waterproof | NO | Yes |
| Noise | Yes | NO |

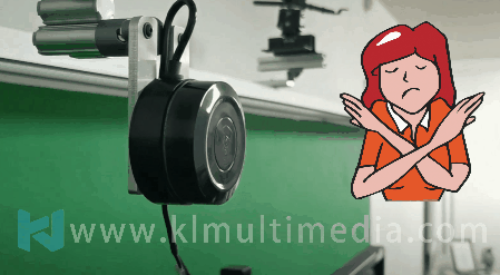

Why has this type of radar been phased out?
Note For quotation
Please provide the dimensions of the interactive area (width and length) and clarify whether it will be installed on the floor or the wall. Additionally, let us know the intended use of the radar sensor.
If you have your own development team, we can provide you with an SDK, allowing you to develop your own content. SDK download link: https://www.klmultimedia.com/develop-interactive-effect-video.html
Introduction

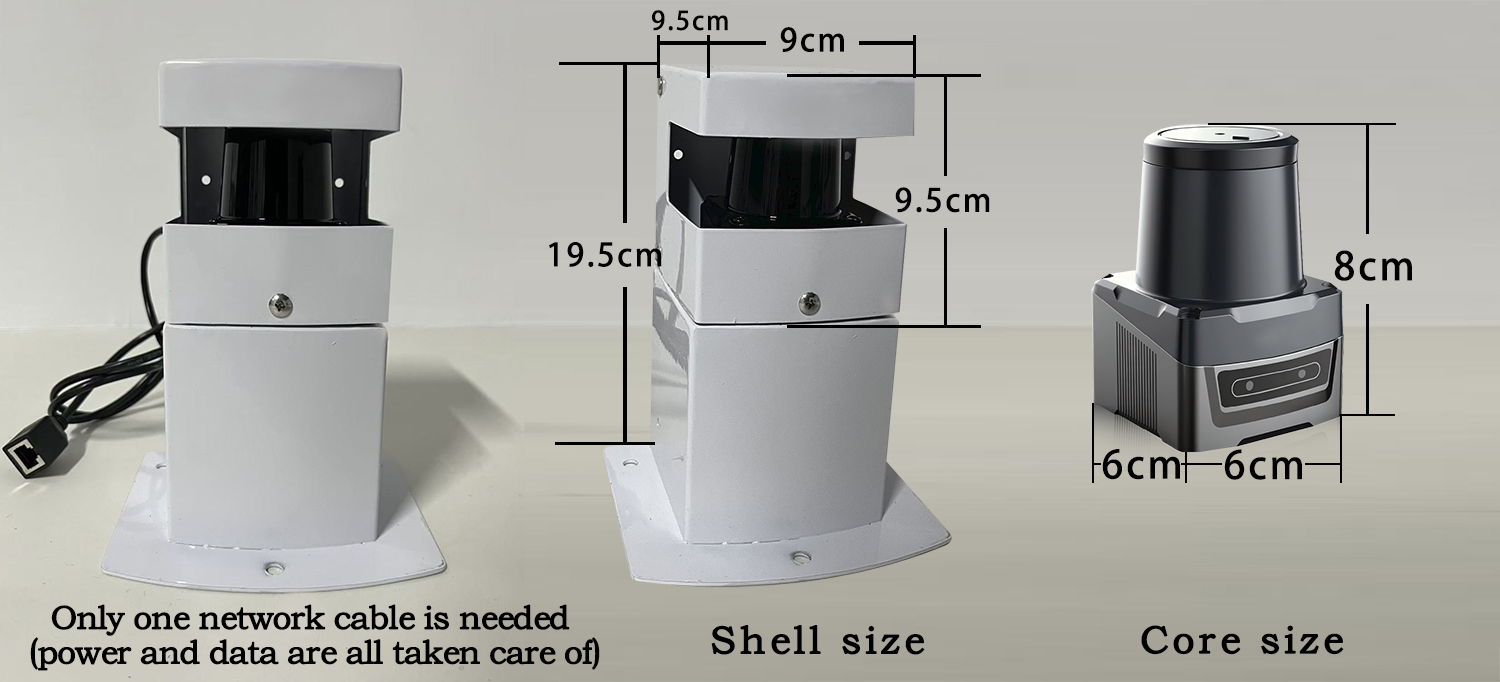

Have you ever imagined that the wall or floor could become an interactable plane after a wall or a floor is installed with a tiny sensor? Yeah, it’s a radar sensor, also called a lidar sensor which is tiny enough so that it’s uneasy to discover. Just a radar sensor can detect a fairly large area because the smallest measure range of KLEADER’s TOF radar is up to 10 meters long if nothing is blocking the sightless infrared laser.Our most powerful radar can measure up to 40 meters. Therefore only one radar can add interactive function onto a 60 * 30 square meters plane if nothing is blocking it. The radar can detect not only where your feet are but also where your finger touch. Via our interactive software, it will send the coordinate of where triggered and the ID of each trigger object to the interactive game by TUIO protocol, mouse protocol, touch protocol, or user-defined protocol. In addition, we will provide SDK to teach you how to develop your games. Suppose your company doesn’t have a software engineer. In that case, we can also provide a development platform for designers or artists who can add their customized content, such as background videos, pictures, or animation sequences, to the platform so that the platform will change to an interactive game with your content. Although it’s a simple way without writing any codes, it can only support simple interaction.
Parameters
| Interactive area and resolution: | Unlimited |
| You prepare kits: | computer, display device, and cables. |
| Display Device: | LEDs,projectors, or LCD screens |
| SDK: | free support |
FAQ（click icon for answer)
 | How to install it? |
| Layout of application based on Lidar touch |
| How to develop your games on our sensors by yourselves? |
| What are the features of radar sensors? |
| Radar sensor parameter |
| Radar CE certification |
| How to see other related products video? |
Specification

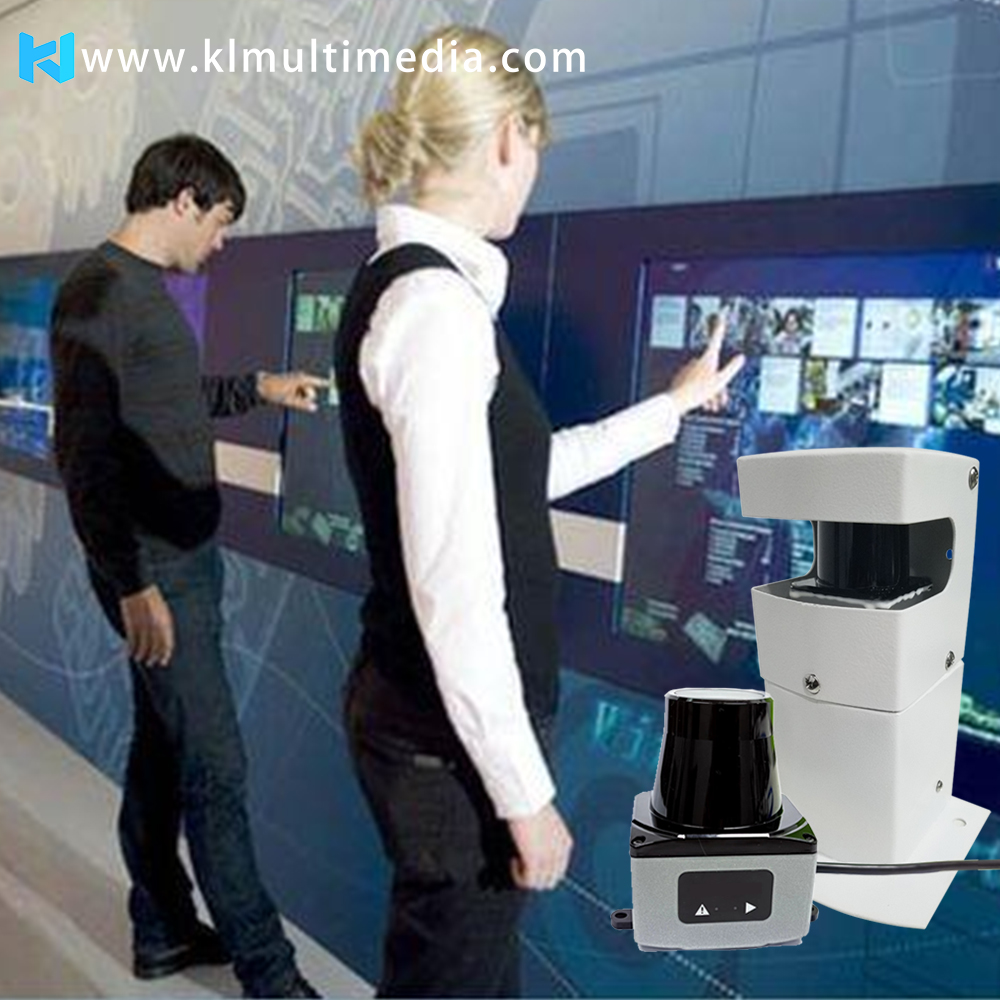

Radar Touch is one of the most popular and applied products in the field of exhibition and interactive display. Radar Touch is commonly used on projectors to interact with projections. It uses radar devices to capture participants' movements and then uploads the captured movements to the phase system for analysis. The analyzed data is combined with the interaction system to produce an interactive effect, allowing participants to interact with wall images. Radar can enable multi-point interaction functions on any developing medium or surface, such as walls, floors, tabletops, and irregularly flat objects, to achieve contact touch, and even non-contact interactive operations on nonflat or water surfaces. It is widely used in exhibitions and Interactive Displays.
LiDAR touch, also known as radar interactive, interactive sensor, large touch screen display or Interactive Wall Kit, which includes Interactive software, interactive lidar and Radar sensor, is commonly used in multimedia interactive places such as tourist attractions, exhibition halls, museums, science and technology museums, school history museums, themed exhibition halls, scenic spots, children's parks, amusement parks, mischievous castles, schools, parks, parent-child interaction sites, restaurants, etc. You can see them in the "Science and Technology" category. Radar touch lidar makes any digital display interactive
You can use the radar touch to make any digital display interactive and make games or applications yourself.
